Case Studies
Engineering Solutions Backed by Experience
With many year’s experience, TMS Services Limited have worked with a wide variety of clients, from small to large companies, across the UK. When it comes to providing solutions that are both practical and cost-efficient, we combine traditional engineering know-how with a modern approach, encompassing performance, sustainability and value.
These studies highlight key facts such as project size, duration, and the solutions provided by our company. We have helped over 1,000 clients since we were setup – read below to find out how we’ve helped businesses solve their problems and how we can help solve yours:

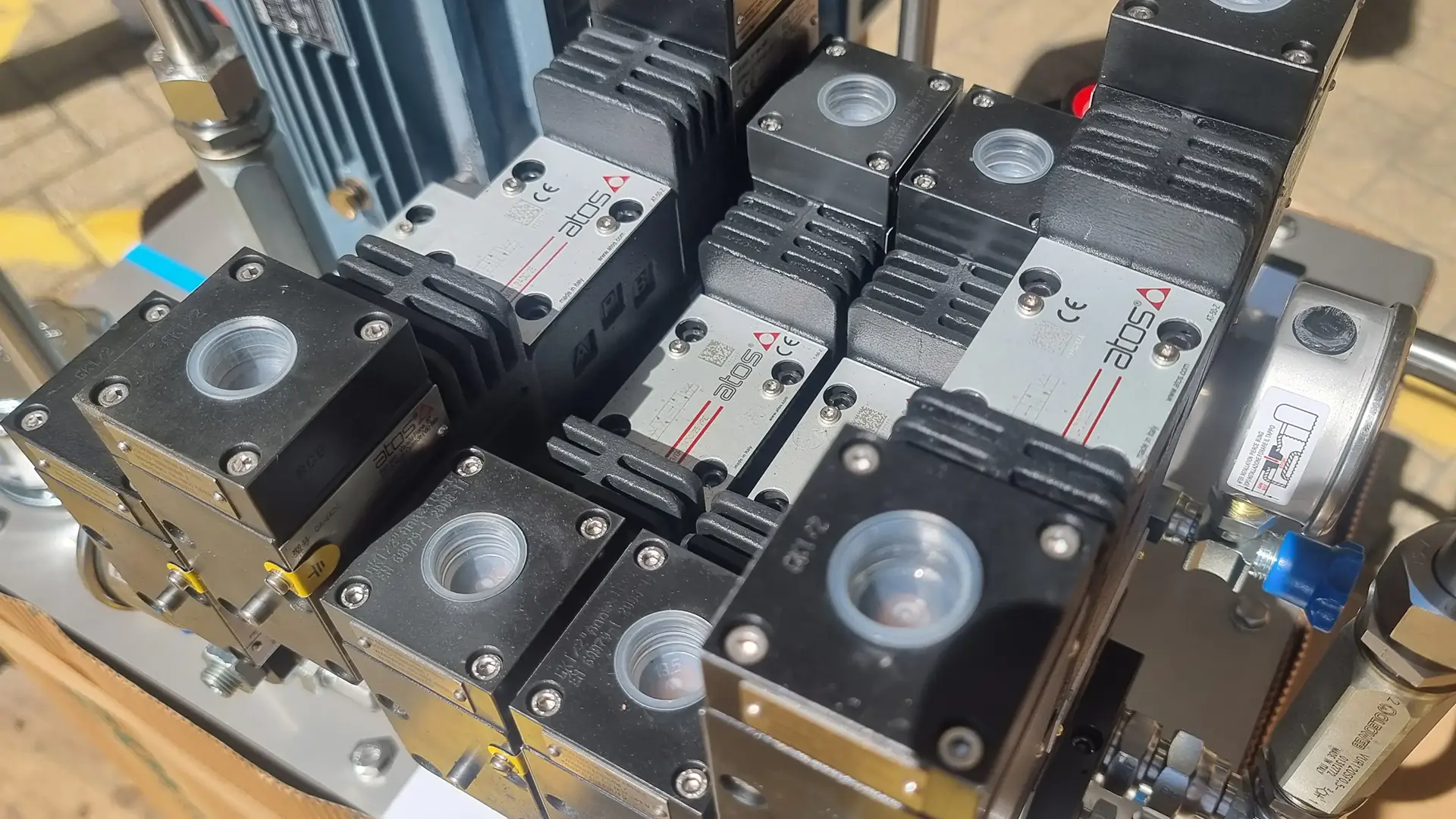

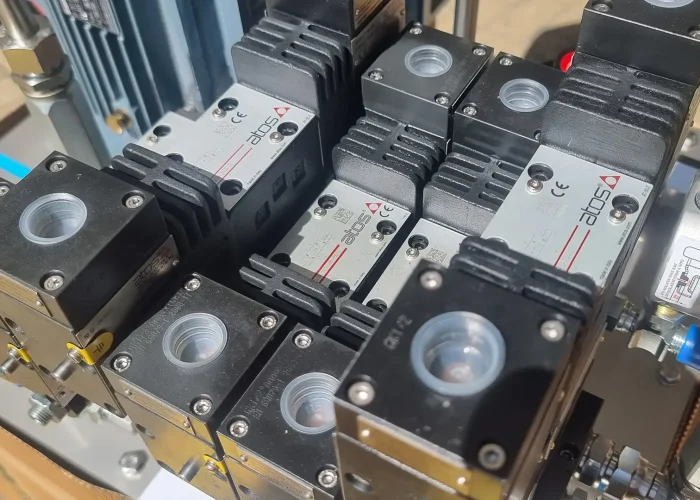

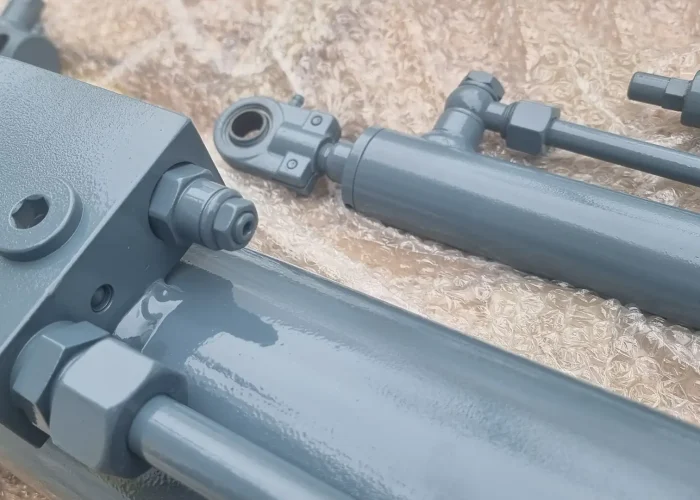

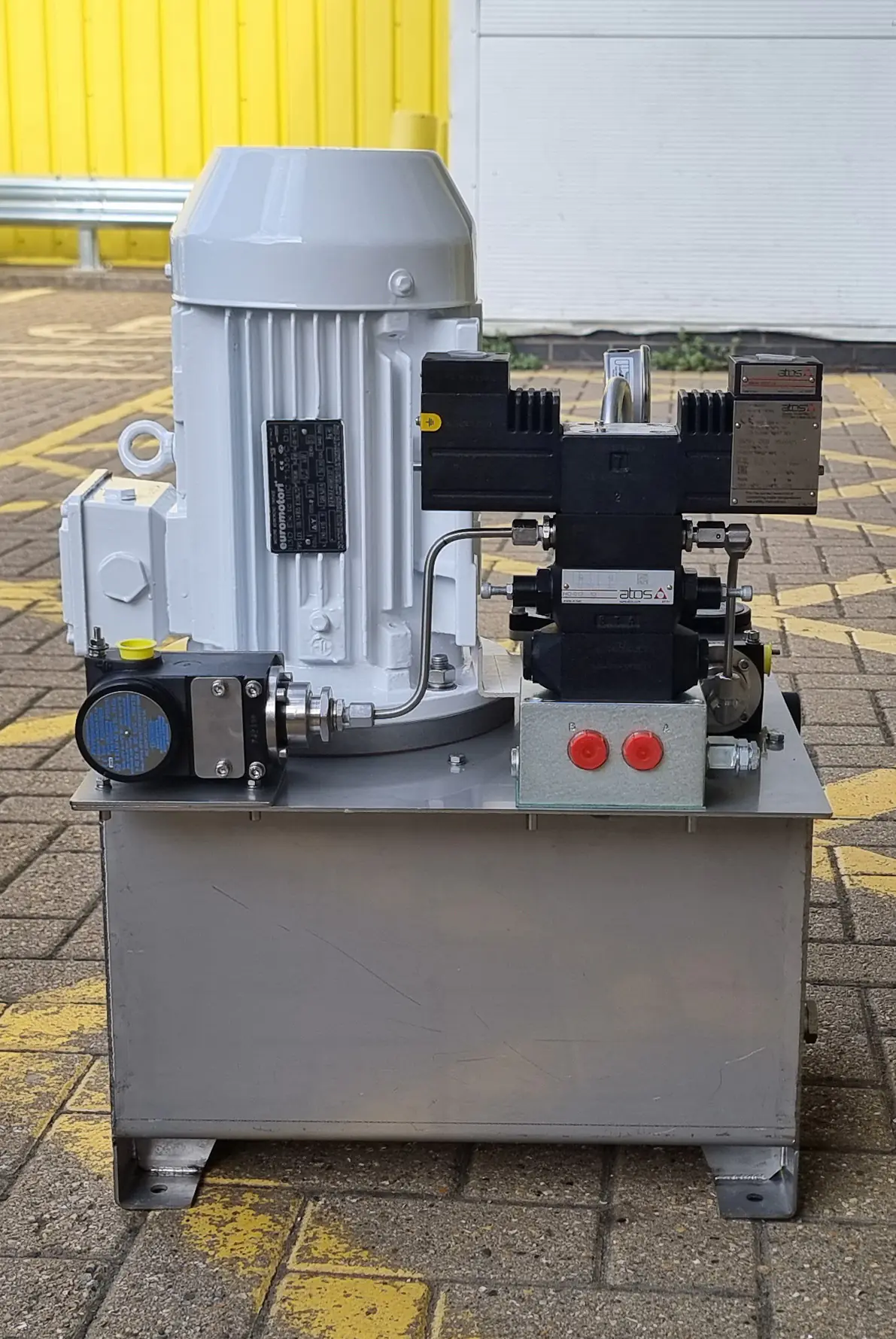

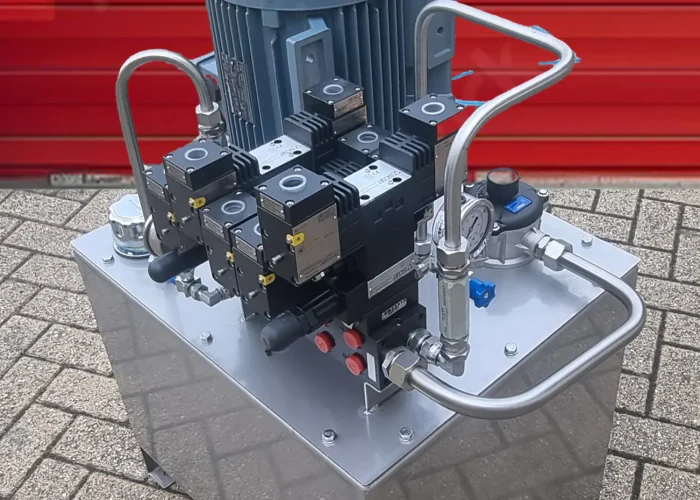

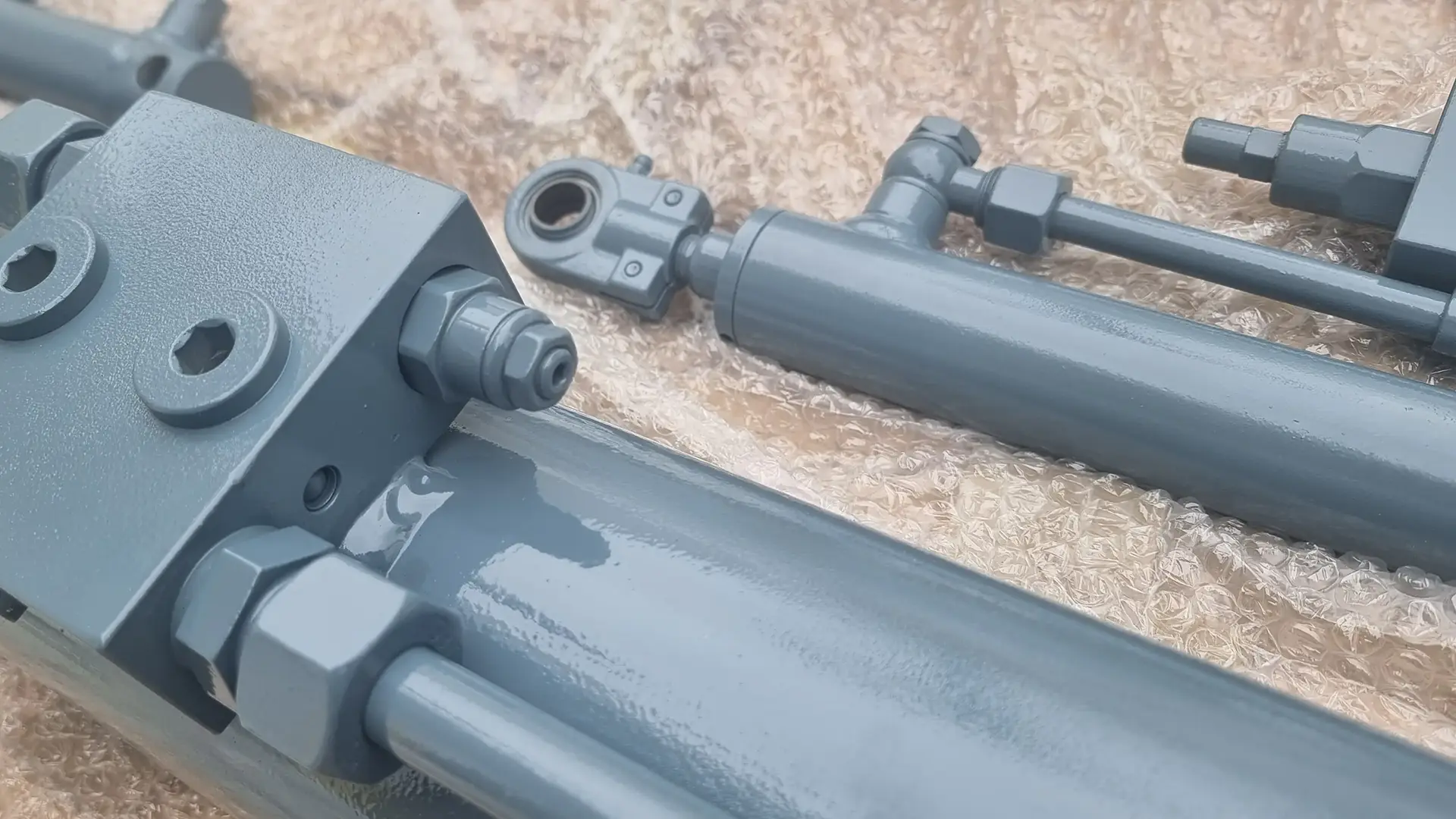

ATEX Systems

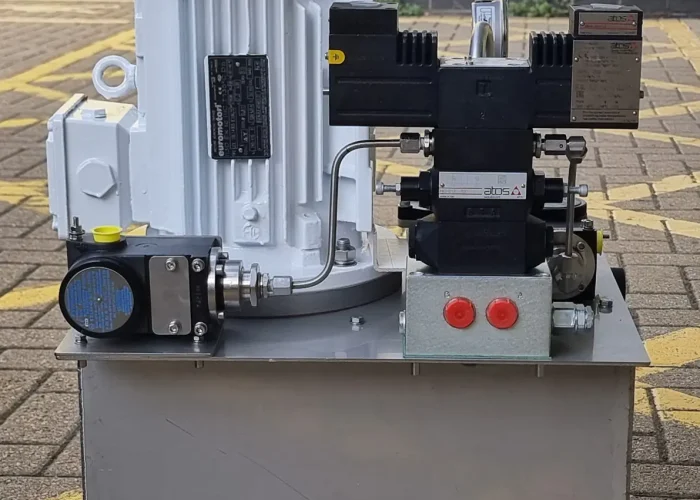

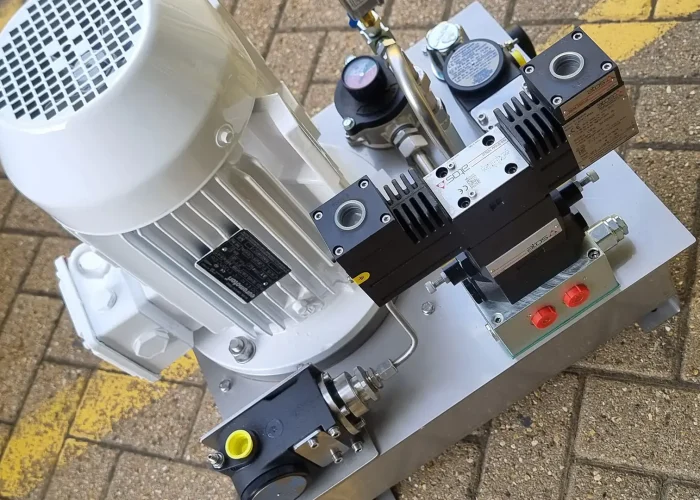

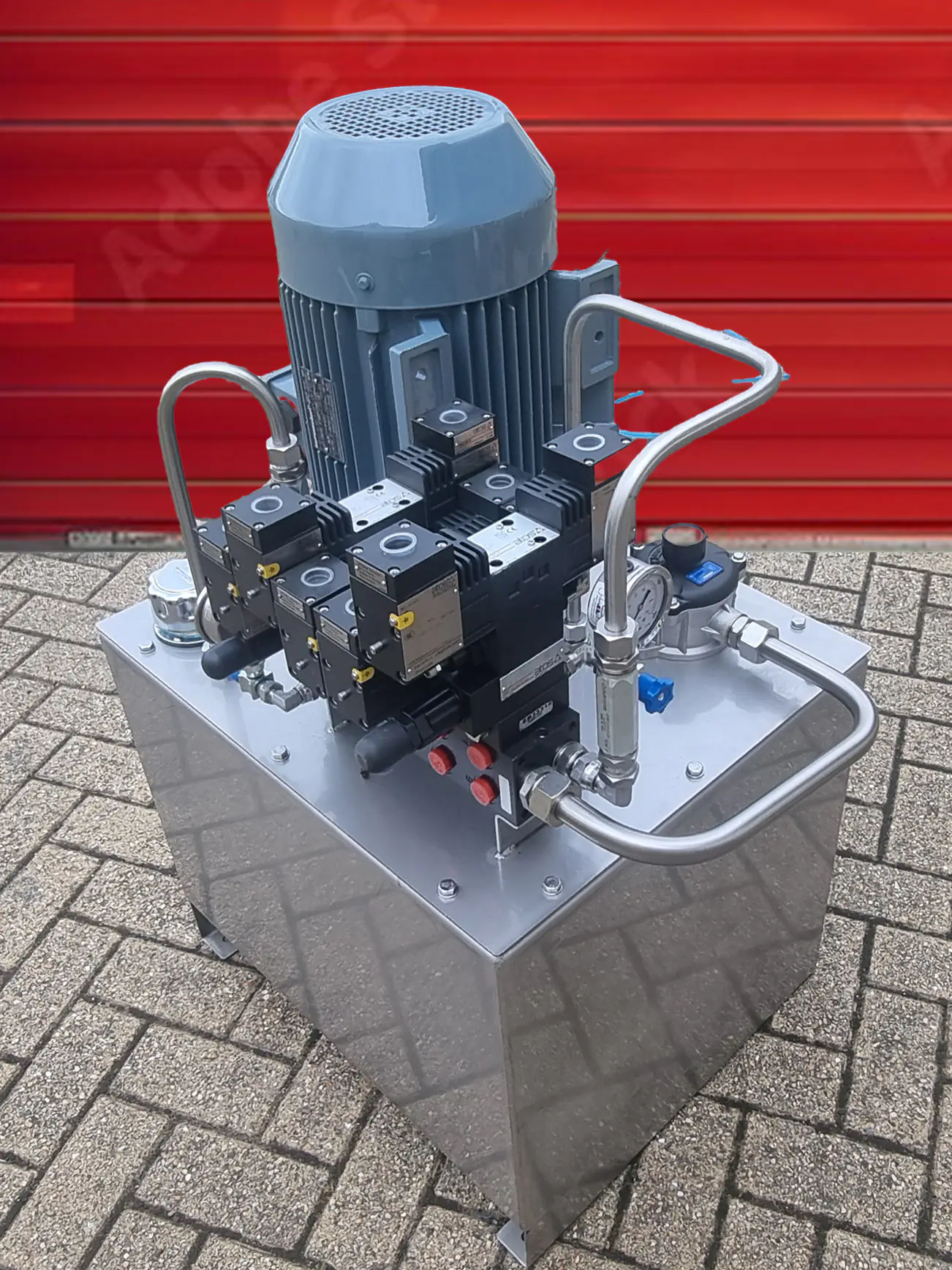

TMS design and supply full ATEX systems for any hazadous environment, our power units use ATEX motors, solenoid valves, pressure switches etc. to cover all classes of ATEX standards. We also offer control systems built to the required standard with documentation and certification provided with the system.

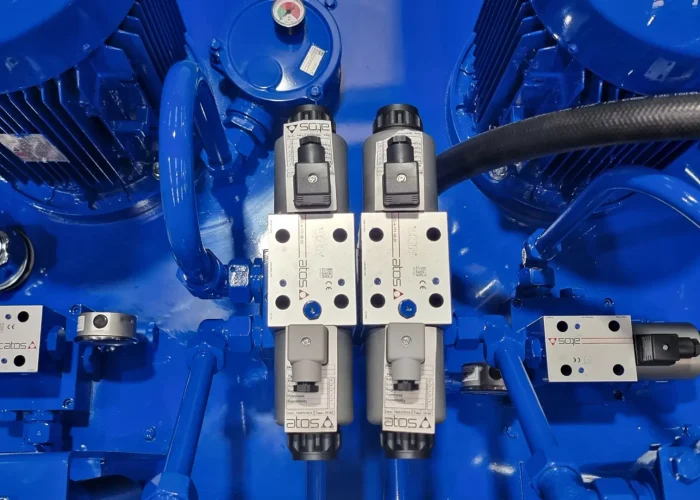

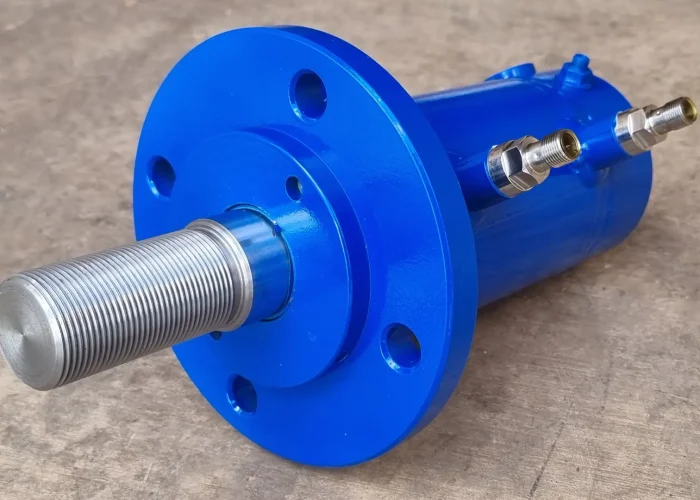

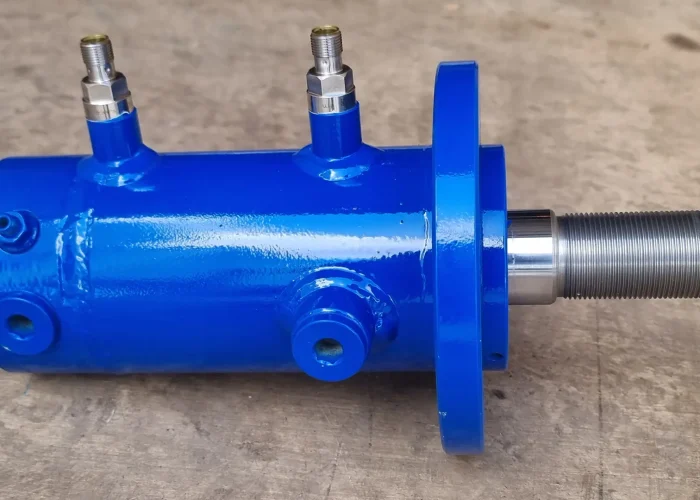

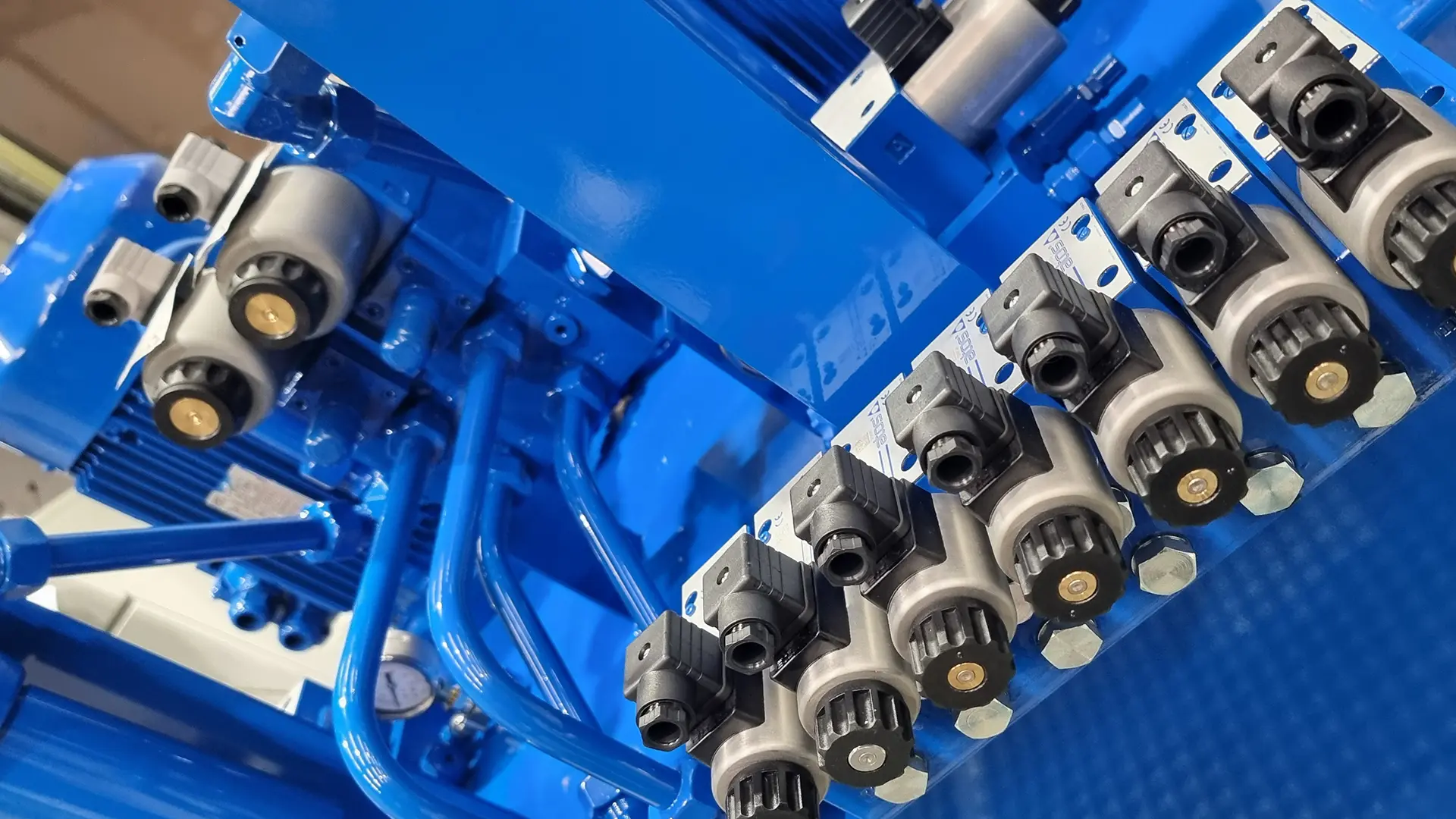

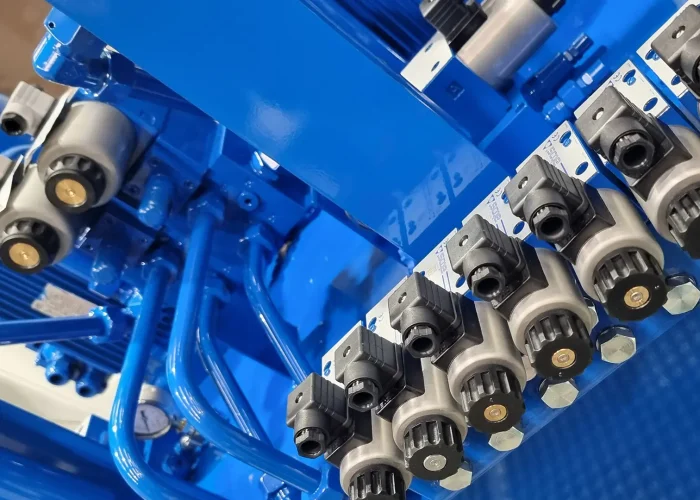

Proportional Systems

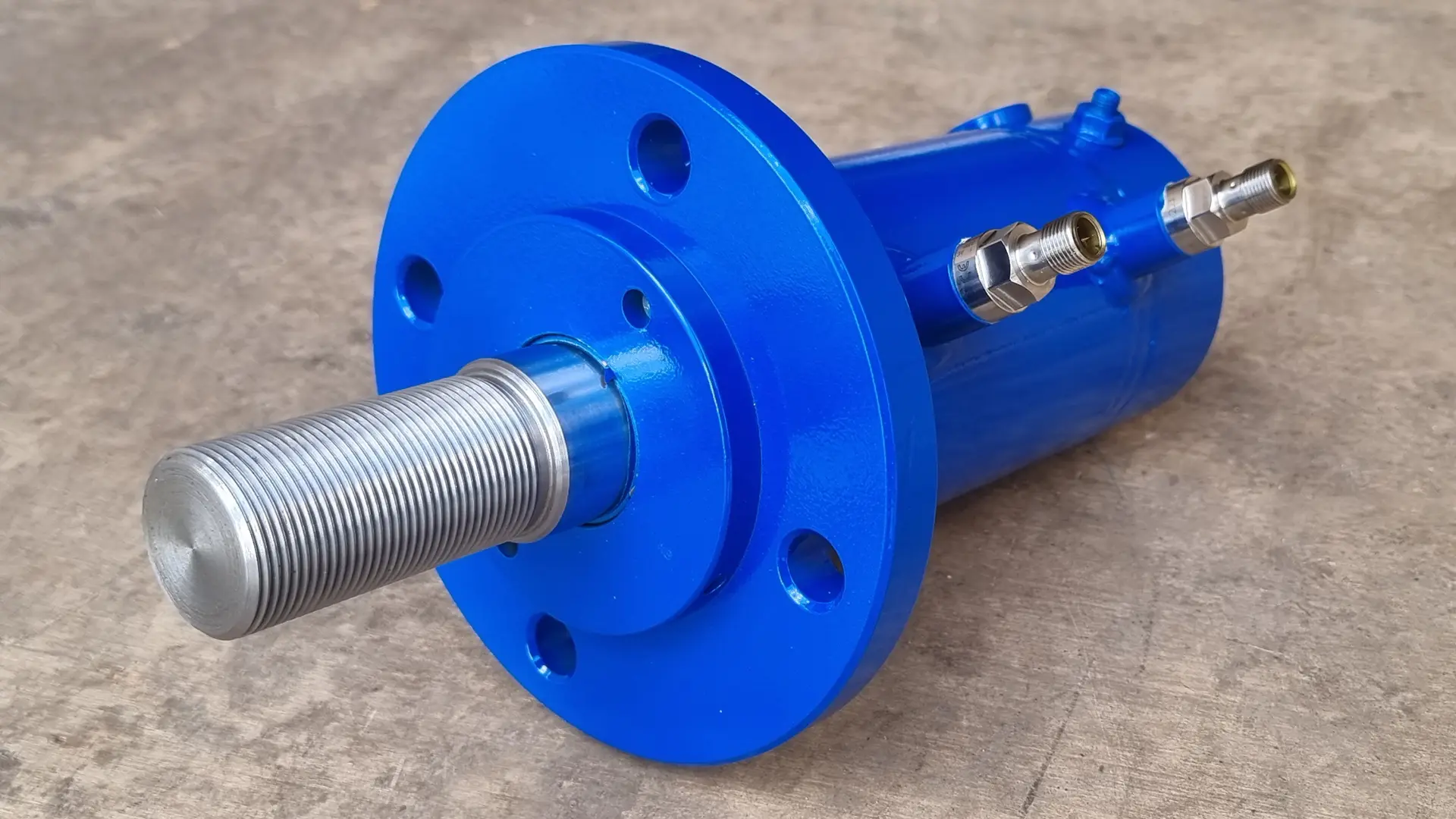

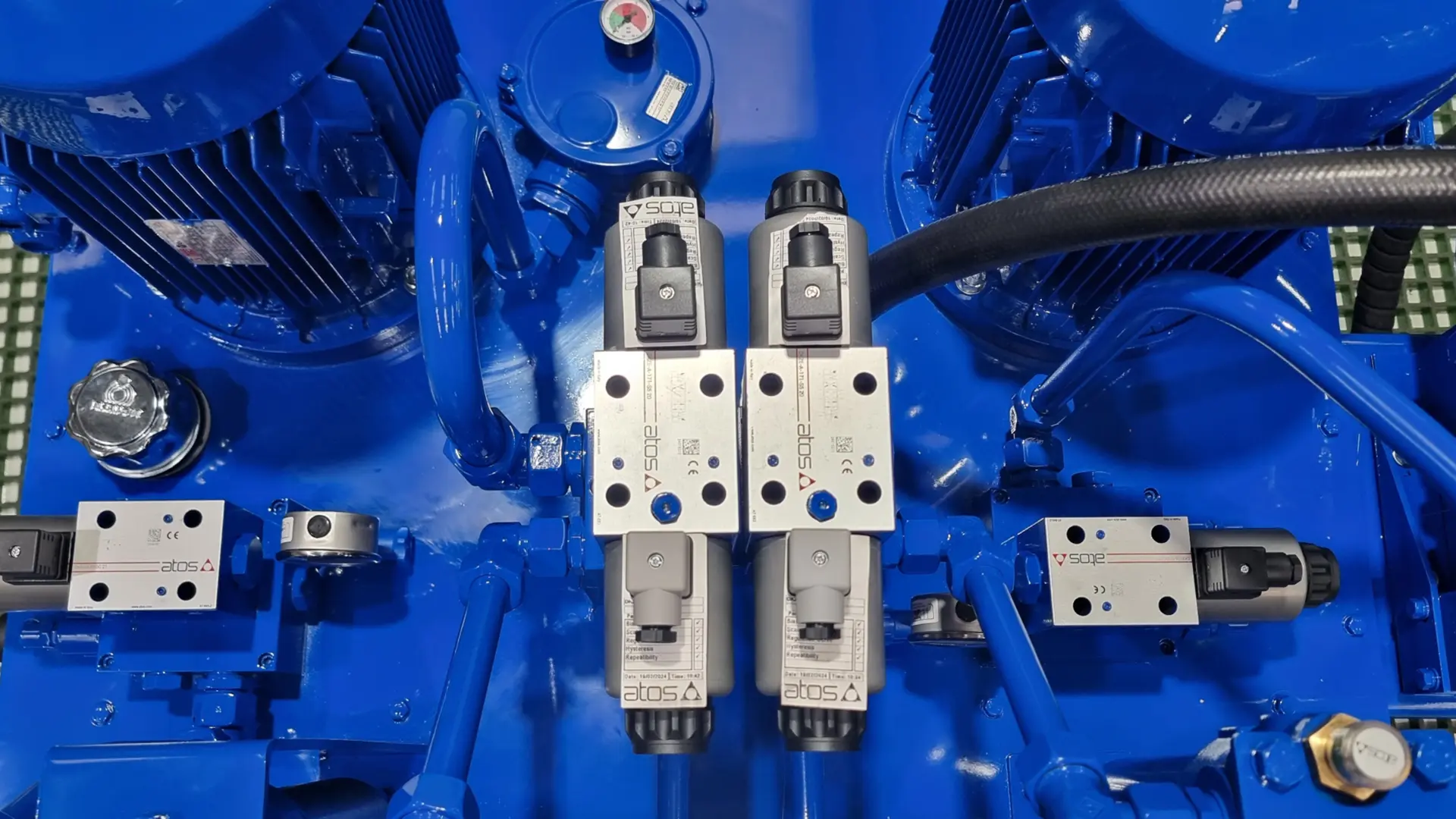

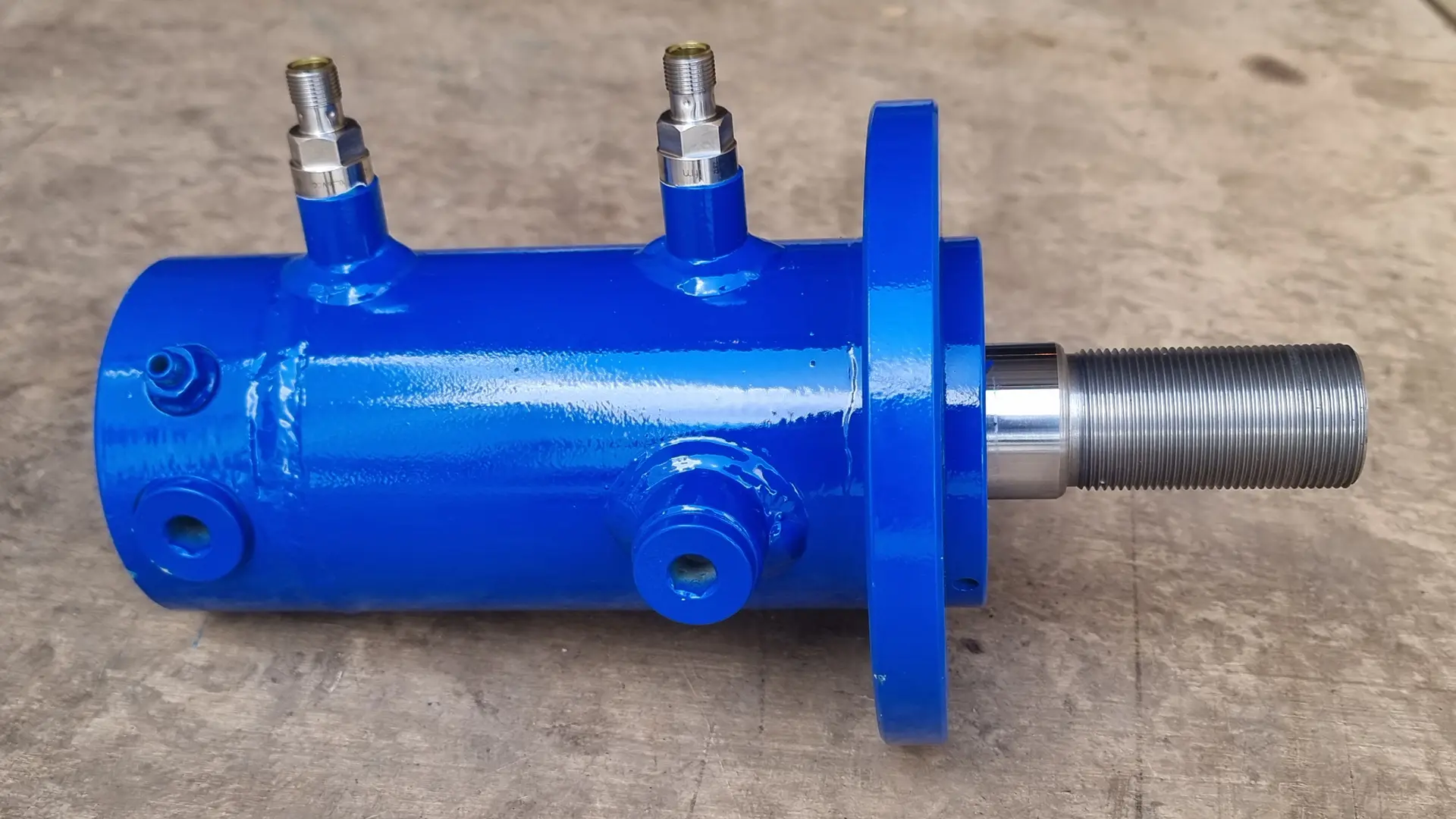

Proportional system offer the ultimate in fine, complex and infinately variable control of your system. Used for high accuracy, high speed and multi-purpose applications these systems offer the best in control and programming of multiple jobs. When used with transducer equipped cylinders they create closed loop systems for full direct control of hydraulic actuators to operate the system to exacting levels of accuracy.

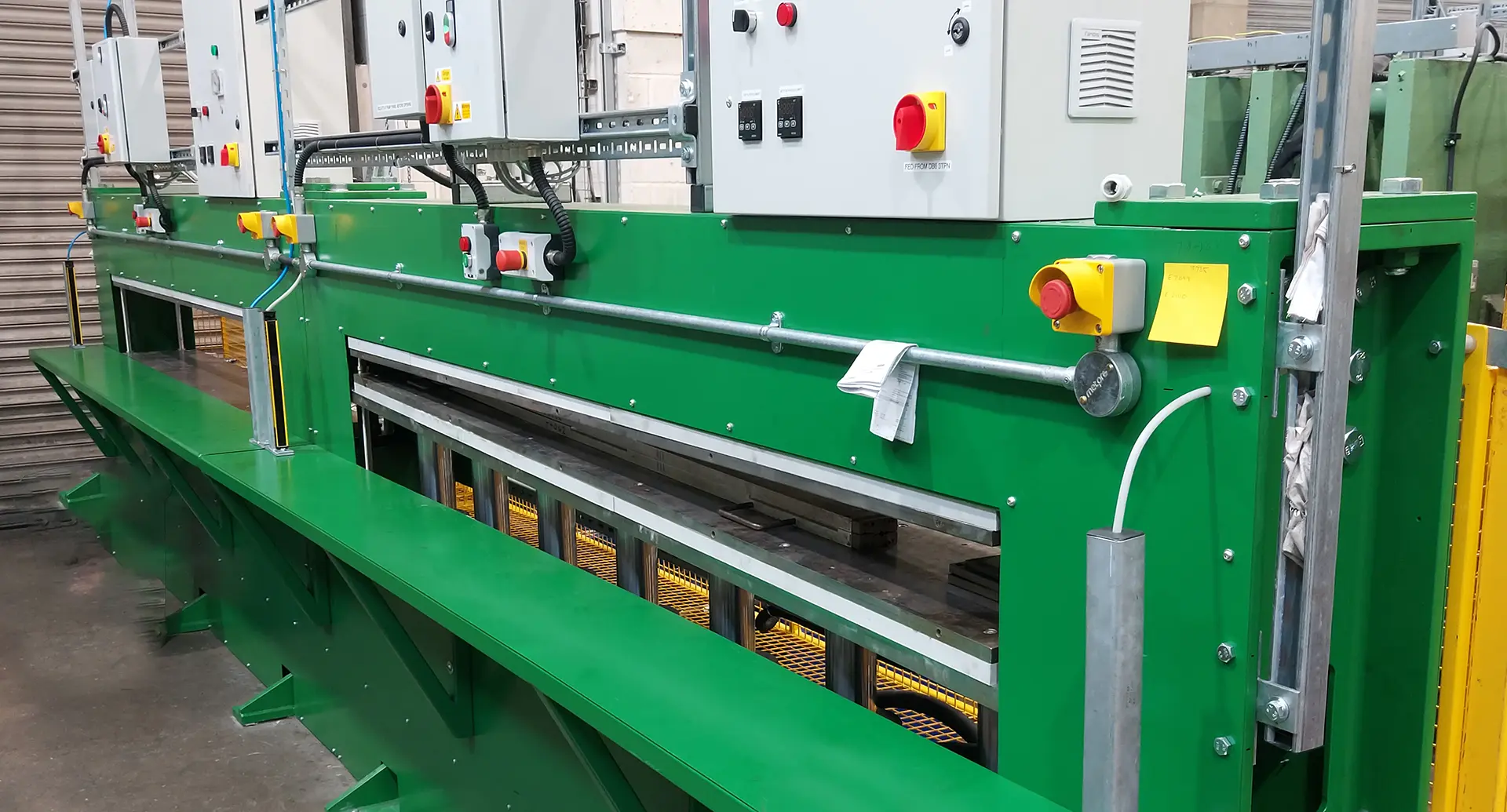

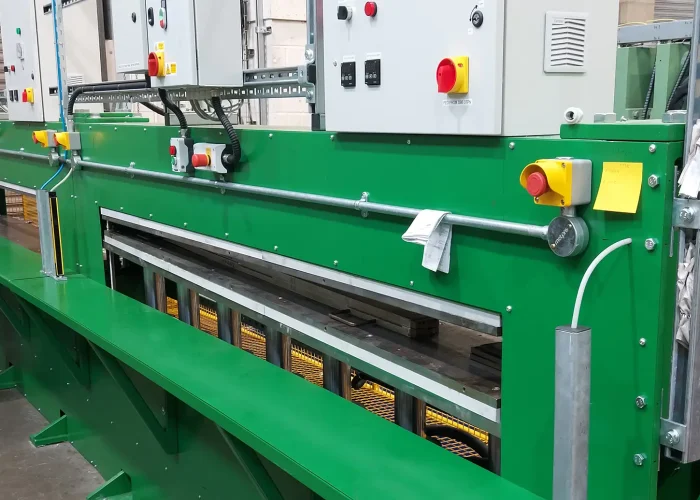

Special Press Systems

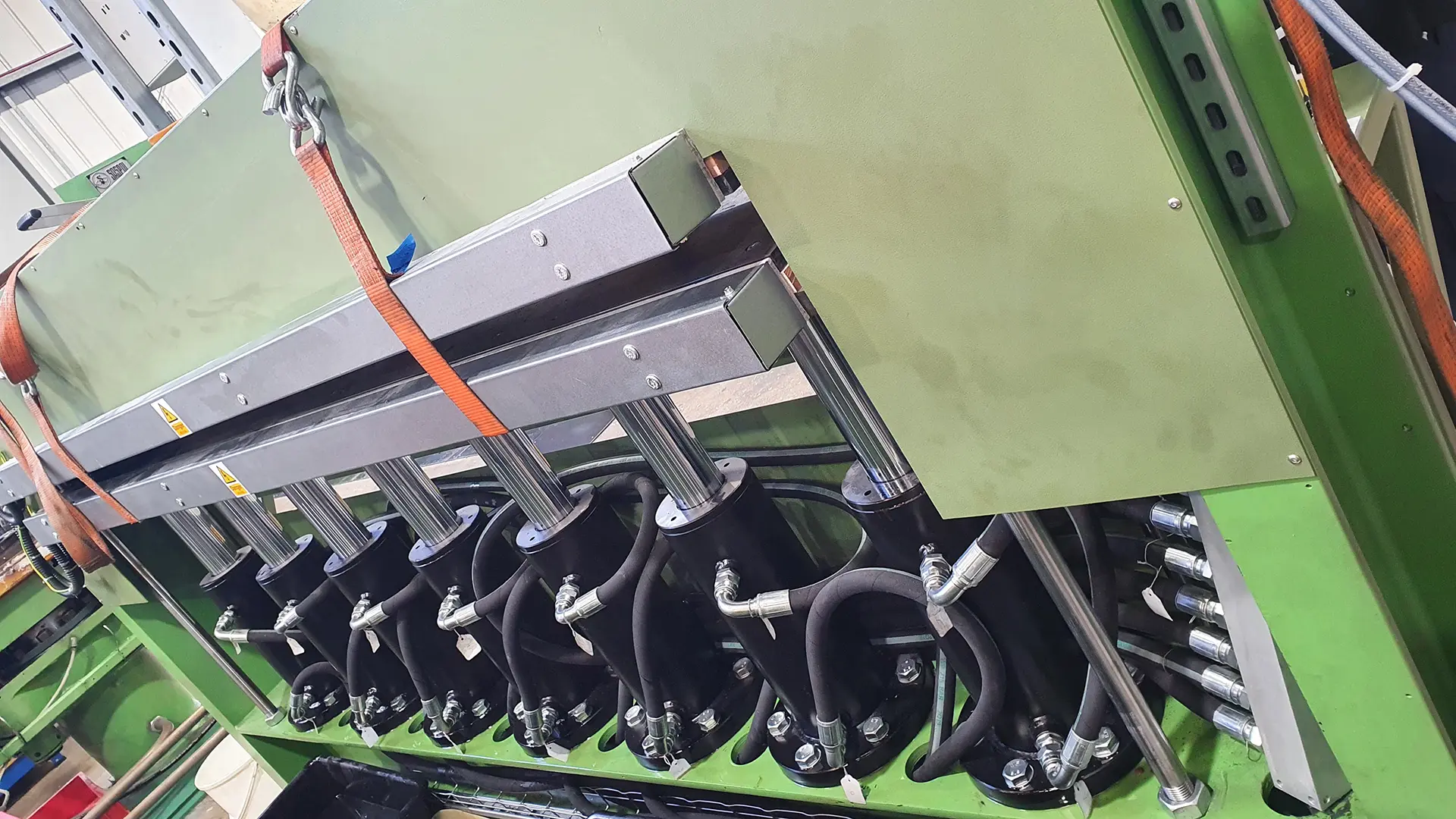

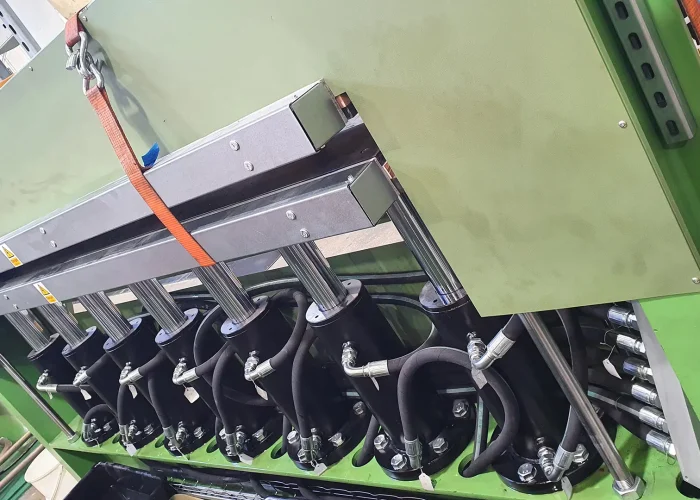

TMS are well versed in the design of press system, from the use of standard free standing press frames utilised to to meet the product requirement through to fully designed and fabricated frames for any application. The press featured in the images uses 7 50 tonne rear flange mounted cylinders running at 350 BAR to lift a platen for pressing components onto aircraft wings. The heated platen is also controlled through the control system for the power unit, running at high-speed initial movement, it switches to high pressure lower speed to control the final pressing of materials. Painted to the customers required colour this is one of 4 pressure supplied by TMS.

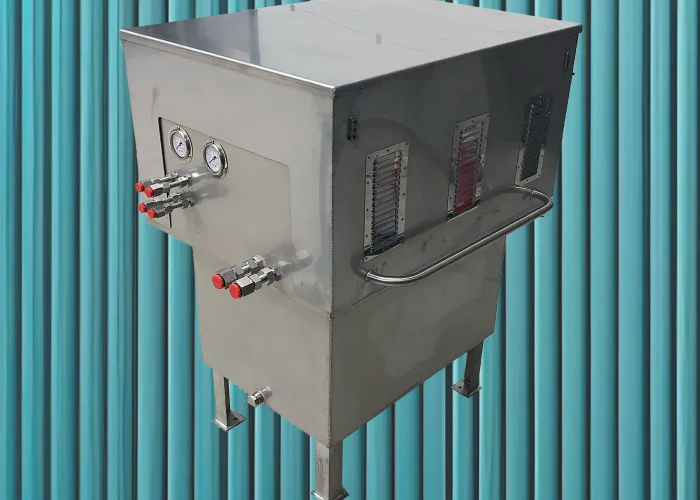

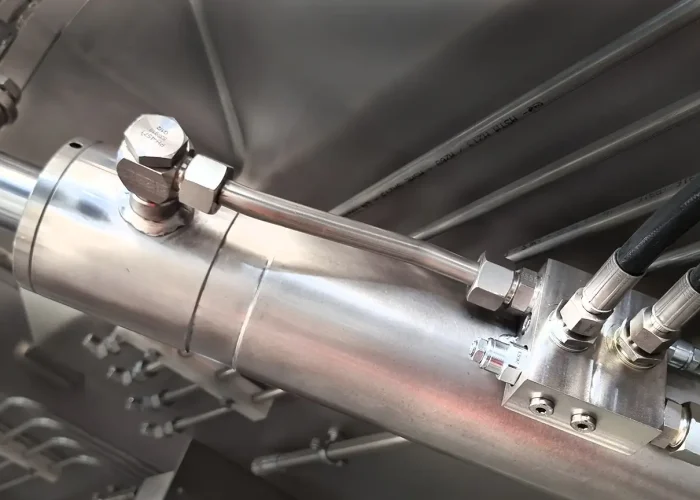

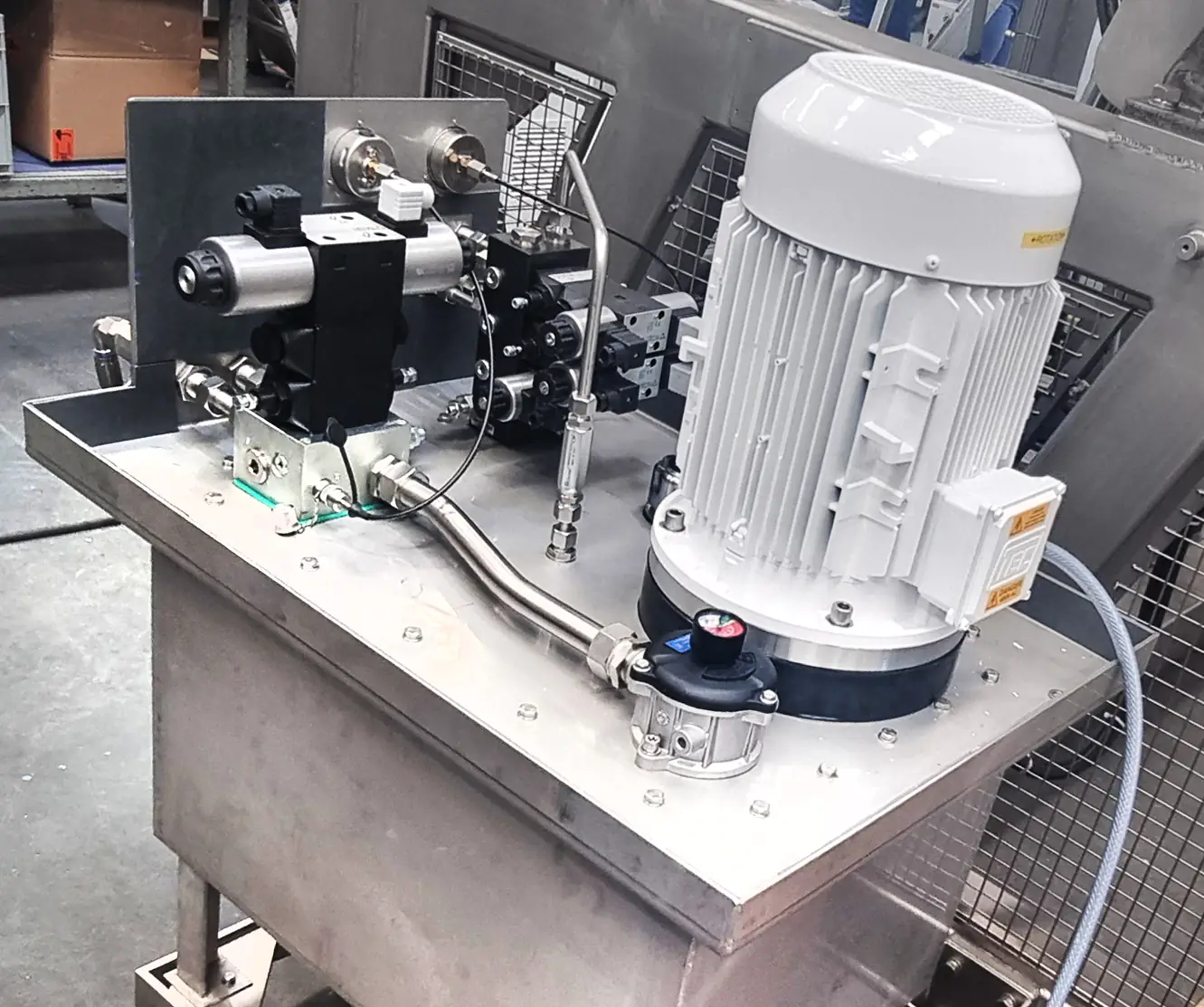

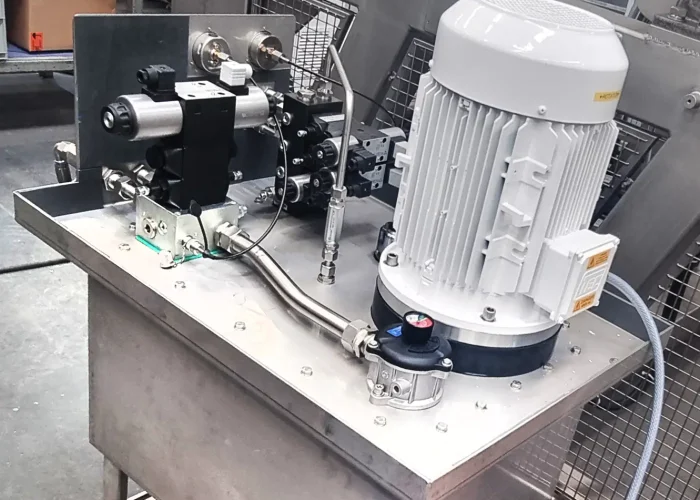

Stainless Systems

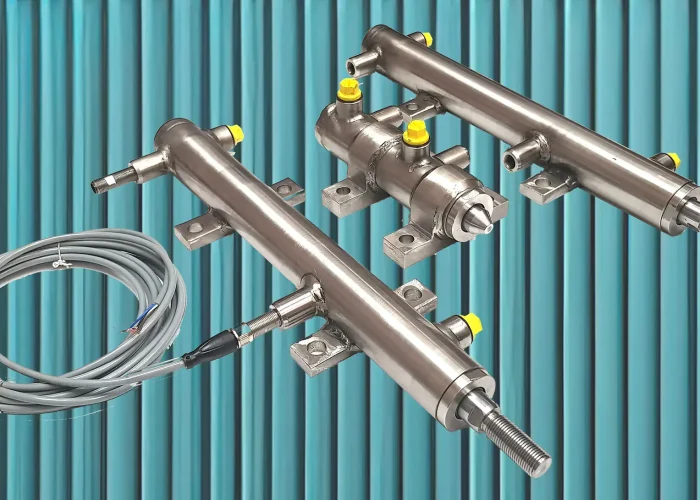

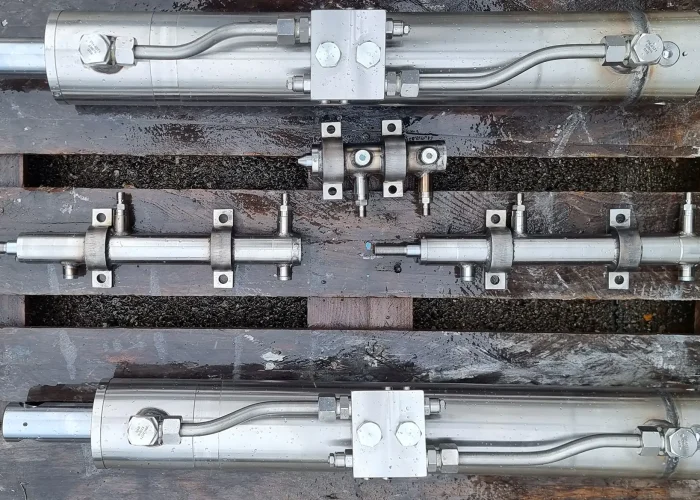

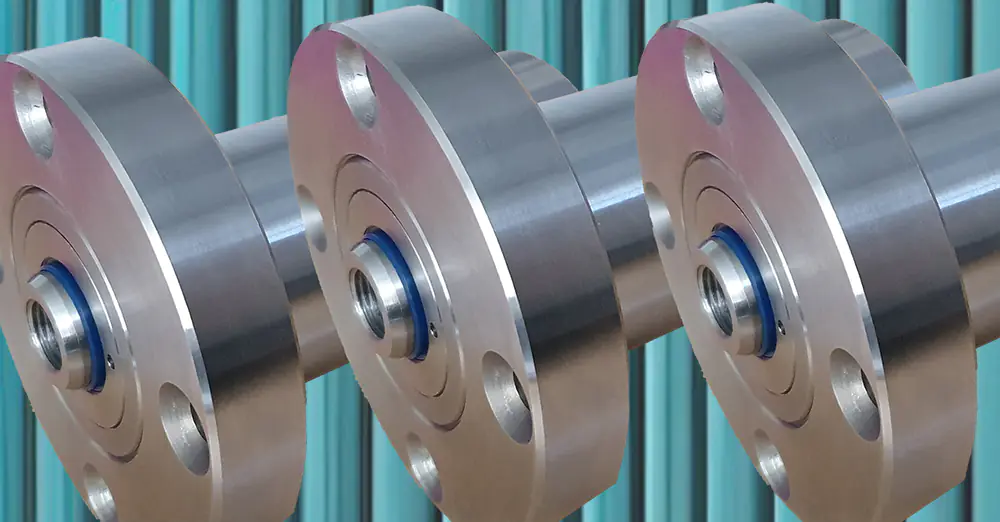

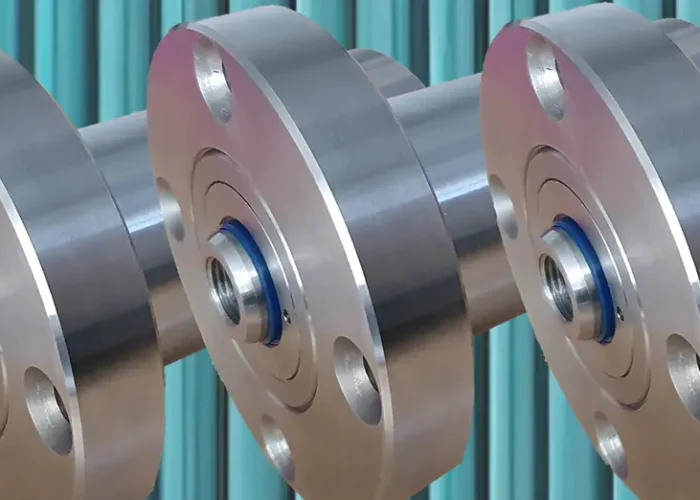

Stainless systems are a speciality of TMS, using any required grade of stainless we can design power units and cylinders with incorporated valving in full stainless for any clean or corrosive environment from food to marine, pharmaceutical to sub-sea we can design the products best suited to your needs. Contact us with your requirements and we can design and supply the system or components to match.

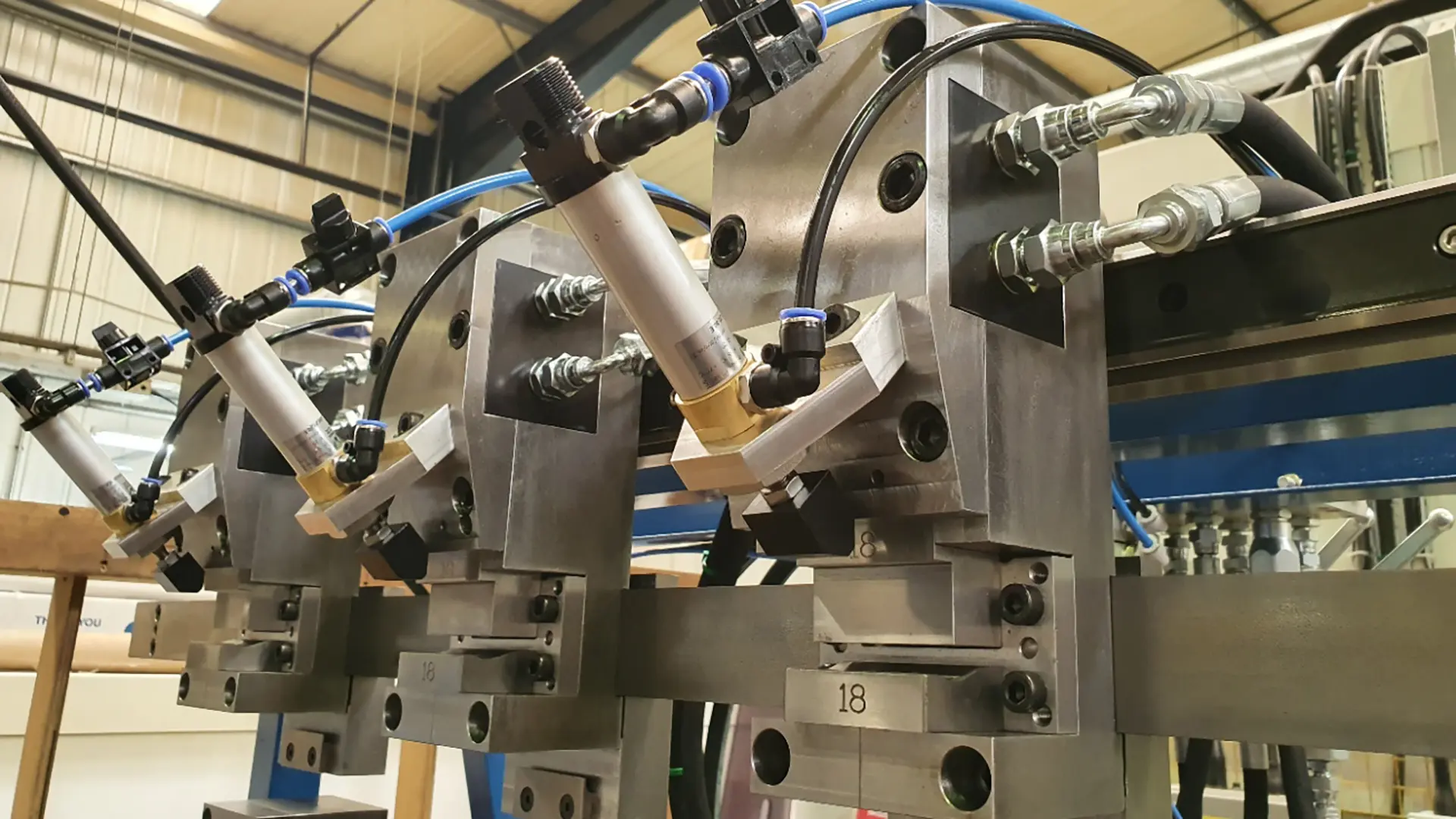

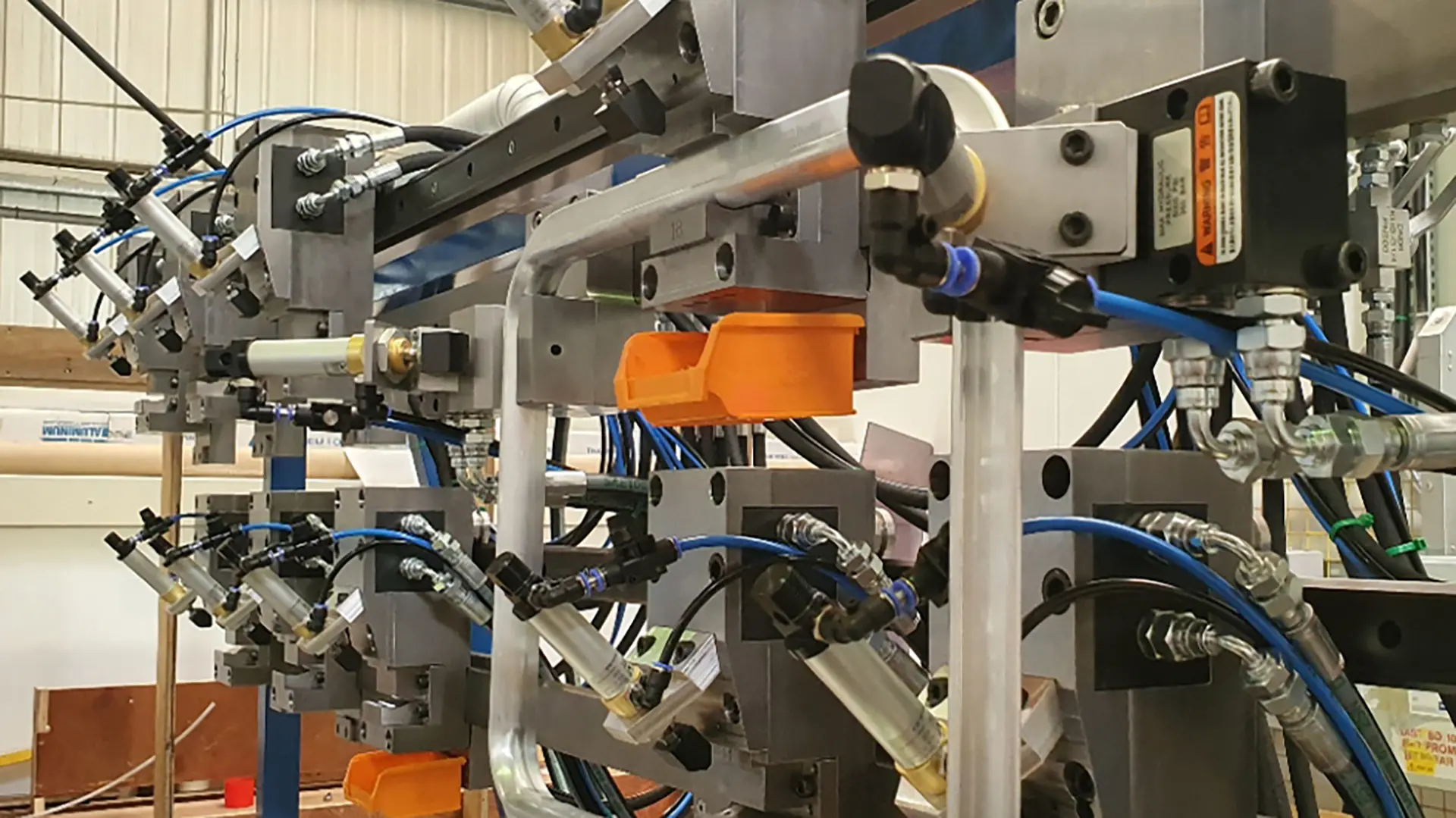

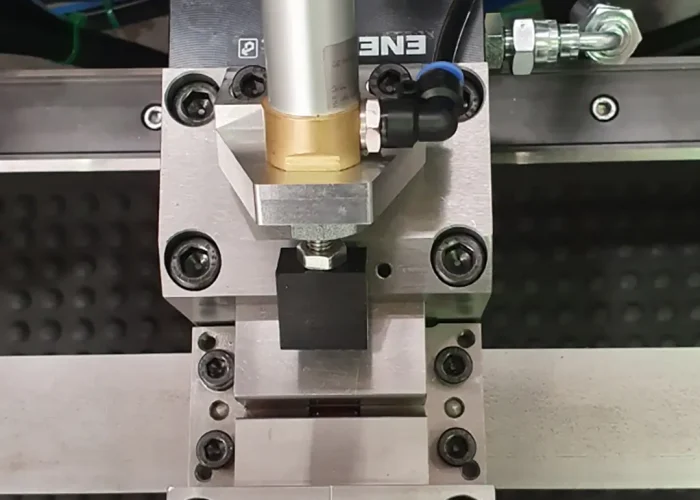

Punch Rig Example

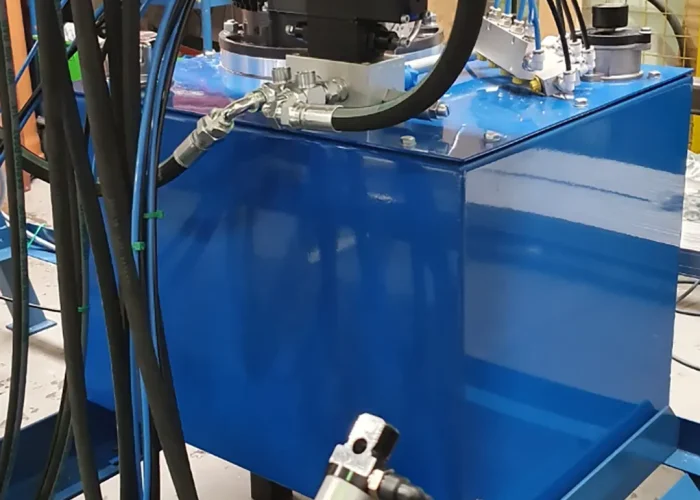

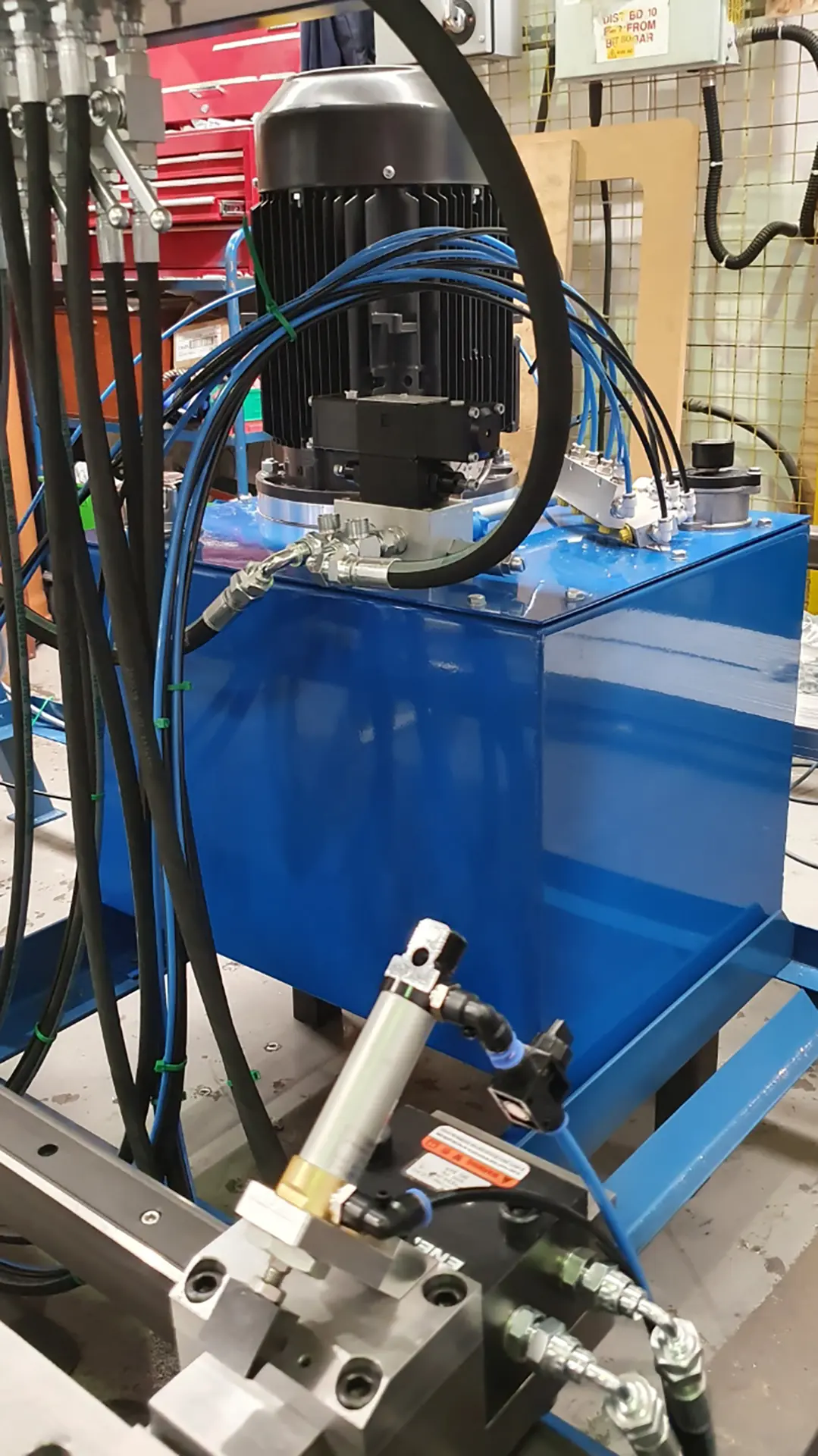

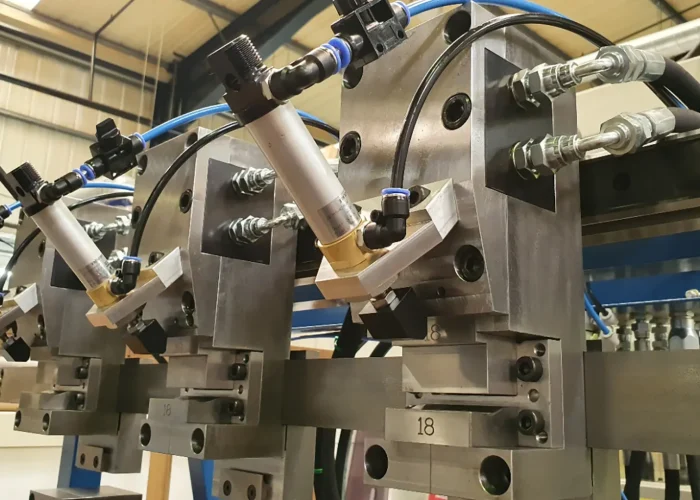

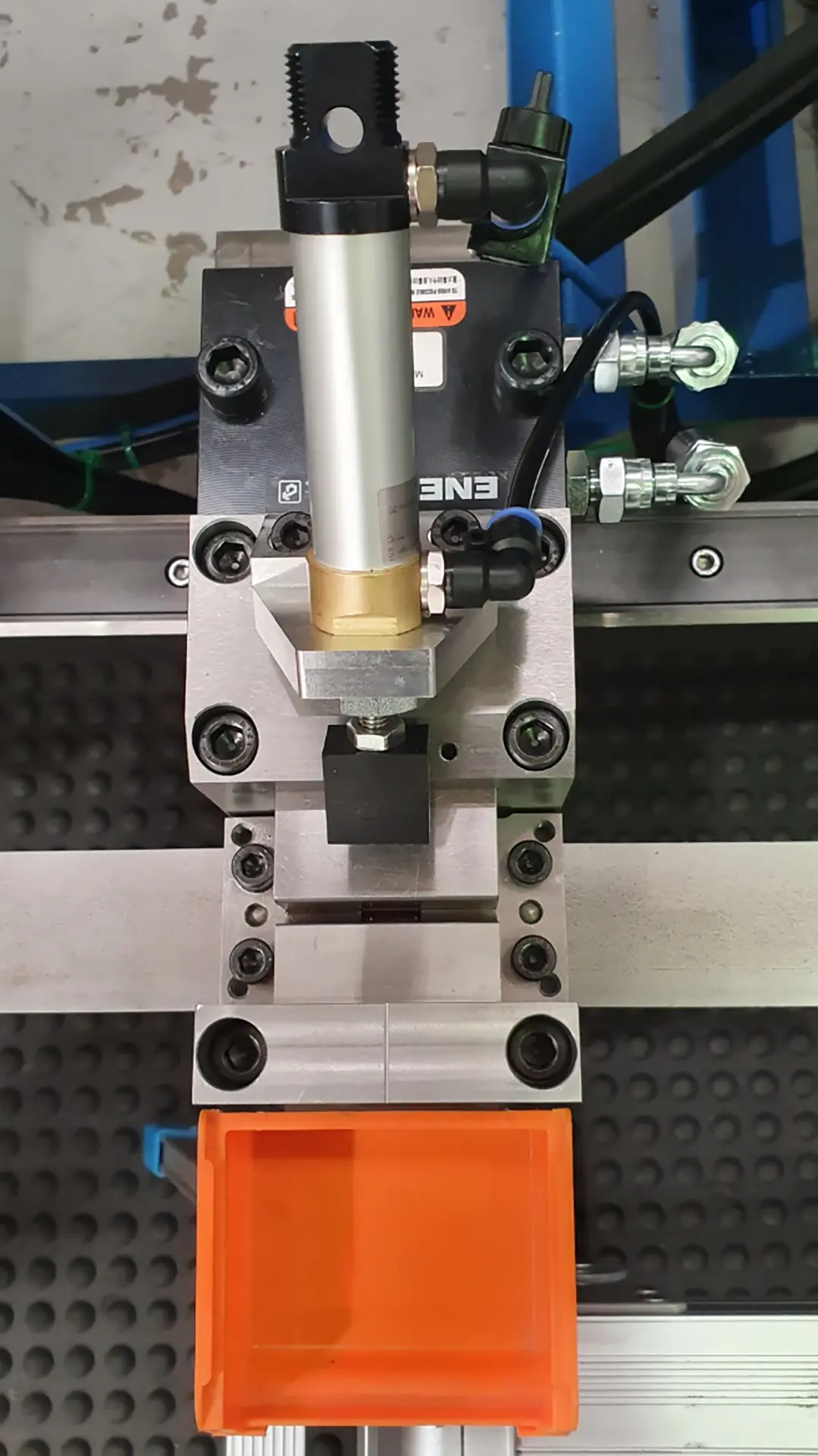

TMS designed and supplied the punching test rig pictured. Using hydraulic block cylinders to punch extruded aluminium frames, pneumatic cylinders acted as clamps for the component with the control system integrating electric and pneumatic control to cycle at high speed. The traversing punch fixtures can be moved along the slide to accommodate frames of varying size with interchanging dies and punches to allow high flexibility in product design to maximise the use of the machine.
System Designers
NEW EXAMPLE COMING SOON
